Description
OVERVIEW
The Neuron Ultra is a powerful, compact, and highly efficient product series. The SBEC in this series incorporates gallium nitride (GaN) devices, which not only reduce the product size but also enhance conversion efficiency, enabling higher operating currents and improving performance. Additionally, it offers users with a safe and efficient way to power the system with your power source connected.
The Neuron Ultra 32A SBEC features a configurable voltage output port, allowing users to select output voltages ranging from 5V to 24V. This can be done either via the onboard setting button or through a Lua script tool on ETHOS, enabling quick switching between different voltage levels. The Neuron Ultra SBEC also benefits from the heatsink shell for effective thermal dissipation.
FEATURES
- Powerful, Compact & Highly Efficient – Neuron Ultra Series
– Gallium Nitride (GaN) device
– Compact Size with Enhanced Performance by Higher Conversion Efficiency - Configurable BEC Voltage Outputs
- Multiple Preset Voltage Modes Fast Switching (by Setting Button – 5 Modes: 5.0V / 7.4V / 8.4V / 12V / 24V )

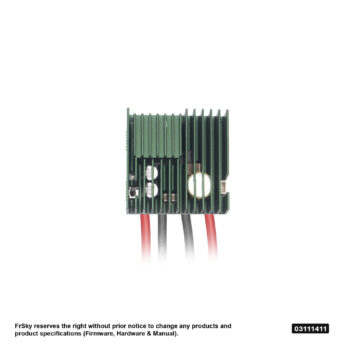

- Fin Heat Dissipation Design
- Working Status LED Indicator
- Compatible with FBUS/S.Port protocol
SPECIFICATIONS

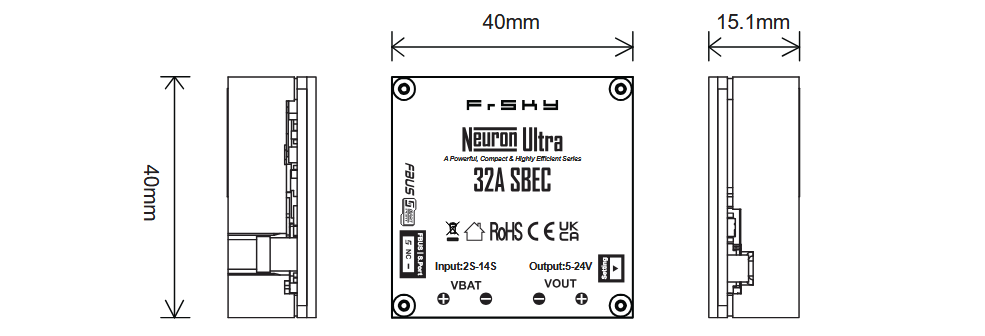

- Size: 40×40×15.1mm (L×W×H)
- Weight: 52.8g
- Output Voltage Range: 5.0~24V
– Preset voltage modes by using setting button: 5.0V / 7.4V / 8.4V / 12V / 24V
– 0.5V step increment by configuring on ETHOS tool. - Default Output Voltage Setting (adjustable): 5.0V
- Continuous Current: ≤32A
(It varies depending on input and output voltage. A recommended operating current is 25A when using a 14S battery with a 24V output setting.)
